Tethered 7kw Portable Ev Car Charger Type 1 And Type 2 IP67

Product Categories
Anengji(Chengdu) New Energy Co., Ltd.
Contact Now

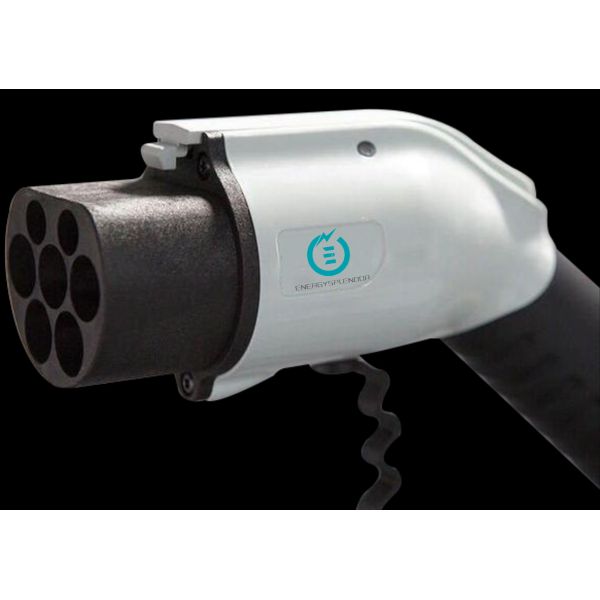

Tethered 7kw Portable Ev Car Charger Type 1 And Type 2 IP67

Brand Name : Energy splendor

Model Number : ES-Plug

Certification : CE

Place of Origin : China

MOQ : 1

Price : 239 USD

Payment Terms : L/C, T/T

Delivery Time : 7-14days

Packaging Details : carton

Power Frequency : 50±5Hz

Payment Method : Executive Standard

Origin : CN

Installation method : Portable

conector : 5 pin

Color : White

IP : IP67

Pin Material : Aluminum alloy, silver plated + top insulation

Contact Now

Tethered 7kw Charging Gun New on-Line EV AC Charger Gun Euro Style EV Car Charger GunAC EV Charging Gun

Description

This EV AV charger portable charger gun for electric cars with integrated intelligent control system makes charging safer, more convenient and effectively protects your car battery.Safe charging and charging according to standards will extend the life of your car battery. You need a safe and smart portable charger!
Protection class IP 54. Max charging power 127.5kW.
Rated current:80A/125A/200A/250A
Operating voltage1000VDC
Insulation resistance >2000MΩ
Terminal temperature rise ＜50K
Withstand voltage 3200V
Contact resistance 0.5mΩ Max
Rated Operational Current 80A/125A/200A/250A
Operating Current 400/750VDC
Contact Resistance 0.5mΩ Max
Insulation Resistance >2000MΩ
The temperature rise of the terminal <50k
Withstand Voltage) 3200V
Mechanical Endurance Unload Plug＞1000times
Coupling Pull - out Force 70N<F<140N
Operating Temperature -30℃~+50℃
Seals:Rubber & Silica gel
Contact Pin Copper alloy, silvering the surface+thermoplastic top
Case Material thermoplastic
Flame-retardant grades Ul94 V-0
Material:
Shell: Thermoplastics
Insulator: Thermoplastic
Sealing Ring: Rubber Material
Insulator Flame Retardant Grade: Ul94-v0
Contact: Copper Alloy, Power Contact with Gold-plated, Signal Contact with Gold-plated
Environmental Performance:
Operating Temperature:-30℃~+50℃
Relative Humidity : 98% At40℃
Degree of Protection: Ip55 (during Charging)
Rating Current and Contact Resistance:
Rating Voltage: 250 / 440V AC, 750V DC
Insulation Resistance: ≥1000mΩ( AC Charging Connector);
8.Thermoplastic Electric Vehicle Charger For Charging PileProduct Festures
1.Meet the'electric vehicle conductive charging connection device'62196-3 IEC 2011 SHEET 3-Lj Technical standards and requirements
2.Nice shape,With dustproof protective cover Easy to open and close
3.Protection class IP55 in mated conditions
4.Reliability of materials,antiflaming ,environmental protection ,abrasion resistance,impact resistance,oil resistance and Anti-UV
Packing list:
1 x holder
3 x screws(M4*40)

specifications

Pin No. Line number CHAdeMO definition function descriptor
1 1 IM Grounding wire
2 2 CP Chargr sequence signal 1
3 NC NC
4 6 CP2 Vehicle charge permission
5 Blue DC- DC output -cathode
6 Brown DC+ DC output -anode
7 7 CS Connector proximity detection
8 8 COM1 CAN-H
9 9 COM2 CAN-L
10 3 CP3 Chargr sequence signal 2
4 EL- Electromagnet&LED - cathode
5 EL+ Electromagnet&LED - anode

Tethered 7kw Portable Ev Car Charger Type 1 And Type 2 IP67Tethered 7kw Portable Ev Car Charger Type 1 And Type 2 IP67Tethered 7kw Portable Ev Car Charger Type 1 And Type 2 IP67

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
