Fast 22kW 44kW Public Electric Vehicle Charger 380V Triple Phase OCPP1.6J Smart

  • 1
  • 2

Brand Name : Energy Splendor

Model Number : ES-AF03

Certification : FCC,CE.TUV

Place of Origin : China

MOQ : 1 unit

Price : 750-870USD/unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Month

Delivery Time : 7-15days

Packaging Details : Carton/Wooden box

Product name : 22kW 44kW AC EV Charger AC Fast EV Charging Station

Output Current : 0-63A

Input Voltage : 380V ±20%, 380V ±20%

Charging Standards : Type 1 Type 2 GB/T

Protection class : IP54

Certificate : CE FCC ROHS

Communication : WIFI / Ethernet / 4G(Optional)

Output Power : 22kw 44kw, 22kW/44kW

Application : Veichles Charging Station

Installation Guidance : Full installation guide Online

OCPP : 1.6Jason

Color : Customizable

Contact Now

Fast Electric Car Charging Station 22kW 44kW Public Electric Vehicle Charger 380V Triple Phase OCPP1.6J Smart EV Charger


Description:

When selecting a 44kW AC EV charger, it's important to consider factors such as the charging speed, connector type, compatibility with different EV models, and support for smart charging features. It's also important to ensure that the charger adheres to relevant safety and regulatory standards, such as the IEC standards for EV charging.

44kW AC EV chargers are an important part of the infrastructure needed to support the transition to electric vehicles. As EV technology continues to improve and battery capacities increase, we can expect to see higher power chargers and faster charging times become more common.



22kW AC EV Charger:


Output power: 22 kW
Input voltage: 380-415V AC three-phase
Maximum output current: 32A per phase
Charging connector: Type 2 (IEC 62196)
Communication protocol: OCPP (Open Charge Point Protocol) 1.6 or higher
Dimensions (HxWxD): 780mm x 405mm x 240mm
Weight: 25-30 kg
Operating temperature: -30°C to +50°C
Protection rating: IP54 (dust and water resistant)

44kW AC EV Charger:


Output power: 44 kW
Input voltage: 380-415V AC three-phase
Maximum output current: 63A per phase
Charging connector: Type 2 (IEC 62196)
Communication protocol: OCPP (Open Charge Point Protocol) 1.6 or higher
Dimensions (HxWxD): 780mm x 405mm x 240mm
Weight: 25-30 kg
Operating temperature: -30°C to +50°C
Protection rating: IP54 (dust and water resistant)


Specification:

Model ES-AF03-1 ES-AF03-2
Technical features
Charging capacity 22KW 44kW(22kW+22kW)
Input/Output power 400VAC±20%-50/60Hz- 400VAC±20%-50/60Hz-
32A-3phase 32A-3phase
RCD 30Ma RCD Type A and DC 6Ma RCD function or Type B(optional)
Standby power <3W
Measuring accuracy 1%
OCPP OCPP1.6 Json(OCPP2.0 optional) For Public charger;
Communication WIFI / Ethernet / 4G(Optional)
User interface LED / LCD(4.3"/7") / RFID
Certificate/Compliance CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018
Charging Interface Type 2 socket / 5M Cable
Special Protection Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
Physical properties
Warranty 2 years
Protection IP54
Enclosure A
Installation Floor-Mounted
Cooling Natural cooling
Operating temperature -30°C to +55°C
Humidity Max.95%(non-regulating)

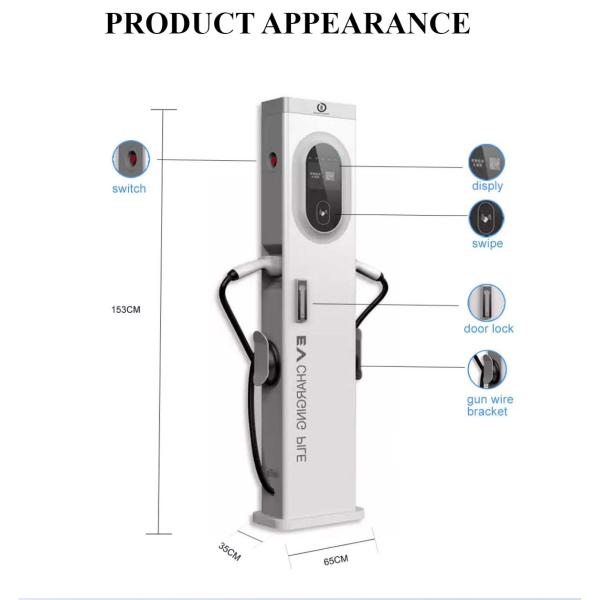

Product Dimensions 410*240*1400mm 410*240*1400mm

Package Dimension

 510*360*1430mm 510*360*1430mm
Net Weight 42Kg 42Kg
Gross Weight 43Kg 43Kg


Fast 22kW 44kW Public Electric Vehicle Charger 380V Triple Phase OCPP1.6J Smart
Fast 22kW 44kW Public Electric Vehicle Charger 380V Triple Phase OCPP1.6J Smart
Fast 22kW 44kW Public Electric Vehicle Charger 380V Triple Phase OCPP1.6J Smart


Product Tags:

44kW Public Electric Vehicle Charger



OCPP1.6J Electric Vehicle Charger

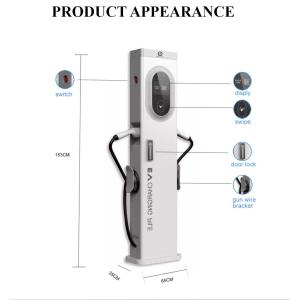

Wholesale Fast 22kW 44kW Public Electric Vehicle Charger 380V Triple Phase OCPP1.6J Smart from china suppliers
